Polaris General XP 1000 High Lifter 15% Dual Idler 4 Inch Portal Gear Lift
Polaris General XP 1000 High Lifter 15% Dual Idler 4 Inch Portal Gear Lift
SSL Secured
Expert Support
Fitment
- 2024 Polaris General XP 1000 Ultimate
- 2024 Polaris General XP 1000 Sport
- 2024 Polaris General XP 1000 Premium
- 2023 Polaris General XP 1000 Ultimate
- 2023 Polaris General XP 1000 Sport
- 2023 Polaris General XP 1000 Premium
- 2022 Polaris General XP 1000 Troy Lee Designs Edition
- 2022 Polaris General XP 1000 Trailhead Edition
- 2022 Polaris General XP 1000 Deluxe Ride Command
- 2022 Polaris General XP 1000 Deluxe
- 2021 Polaris General XP 1000 EPS Pursuit Edition
- 2021 Polaris General XP 1000 EPS Deluxe
- 2020 Polaris General XP 1000 EPS Deluxe
- 2020 Polaris General XP 1000 EPS Deluxe Ride Command
Features

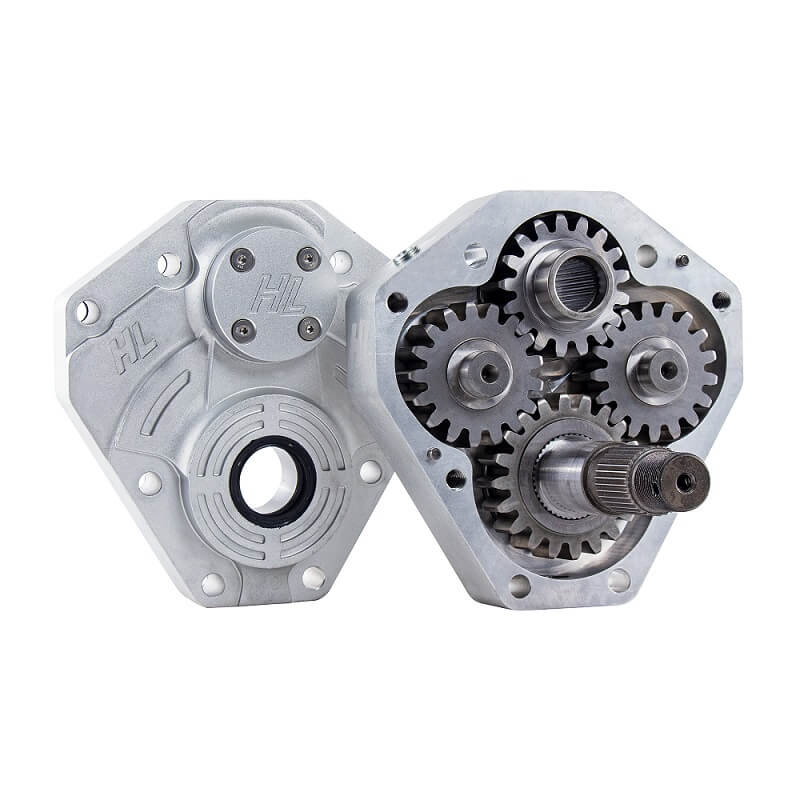

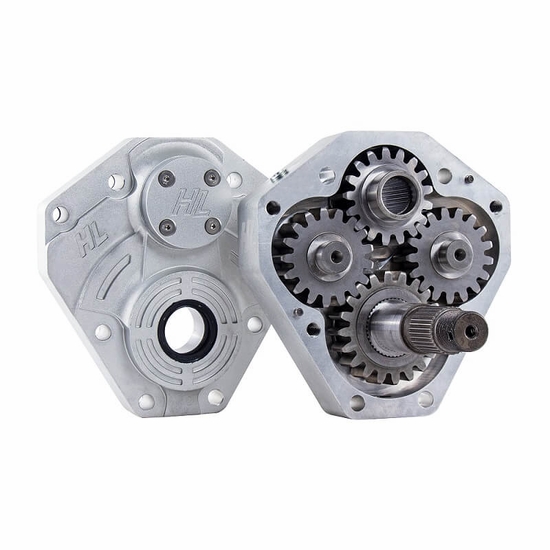

- The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half
- More reliable torque transfer
- 15% gearing extends brake life by needing brakes less often due to greatly improved engine braking

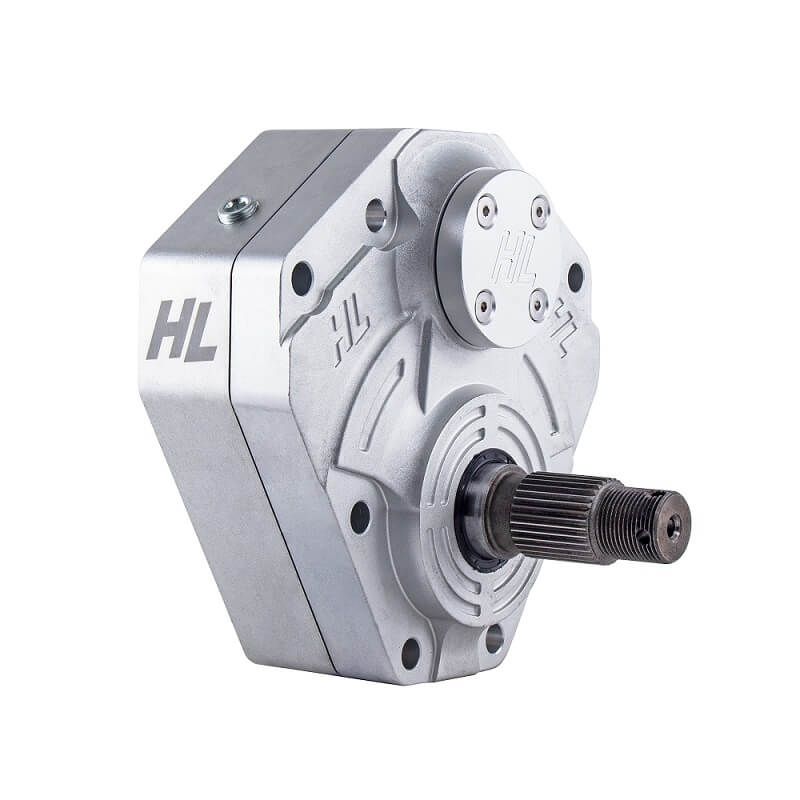

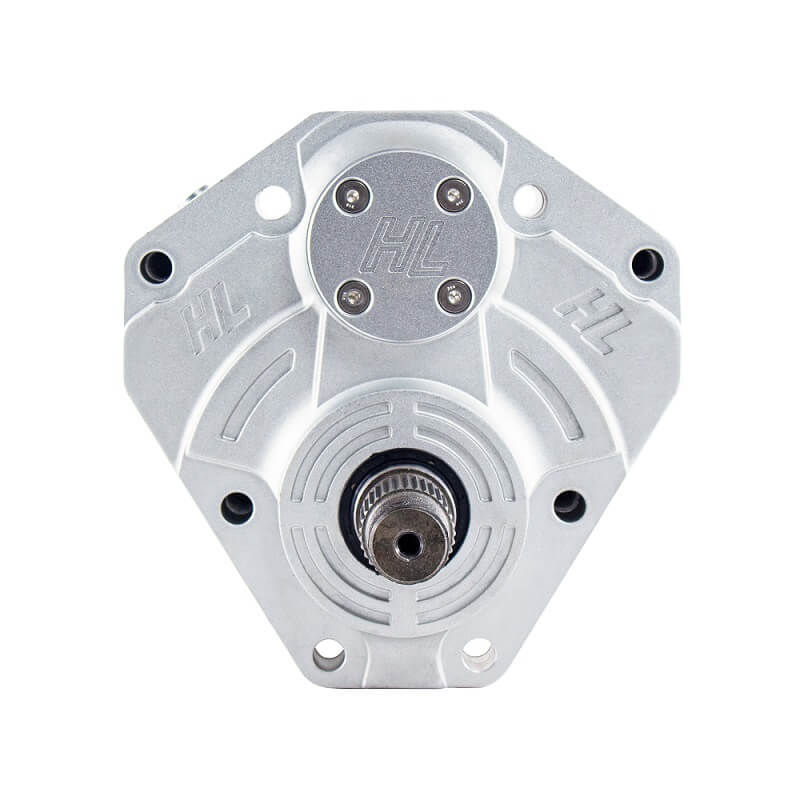

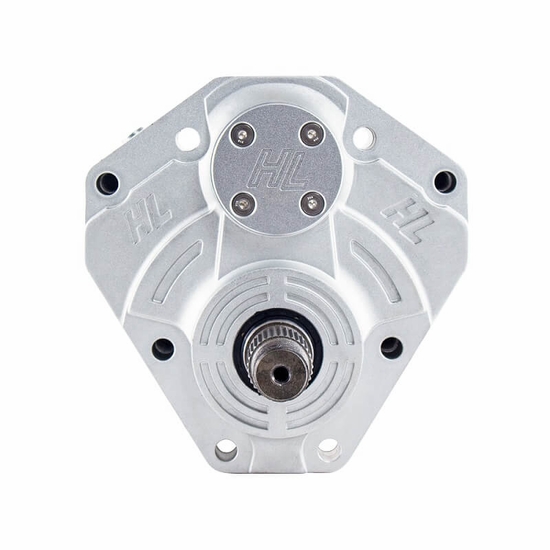

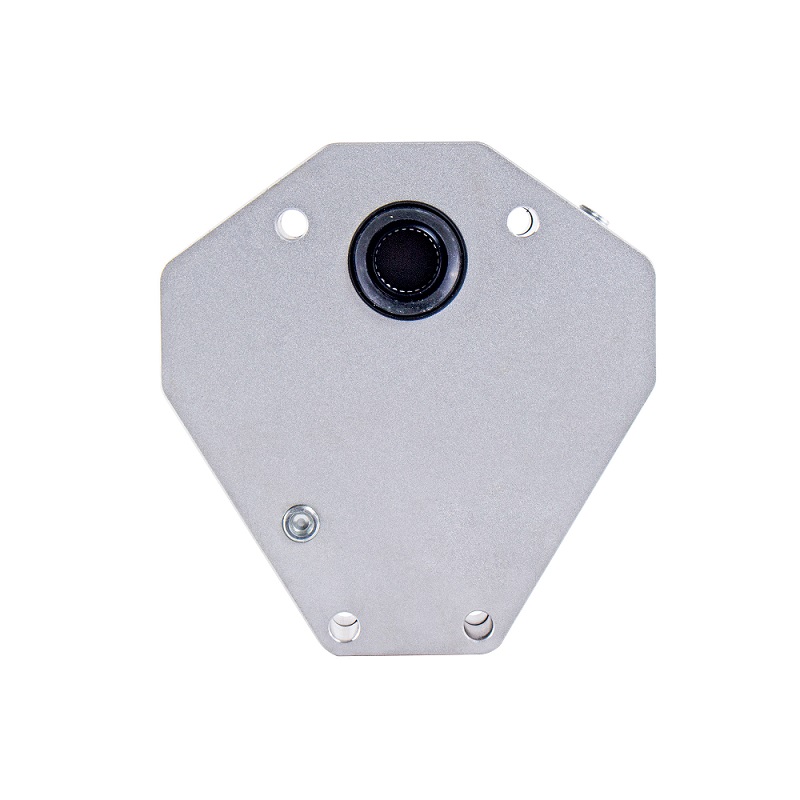

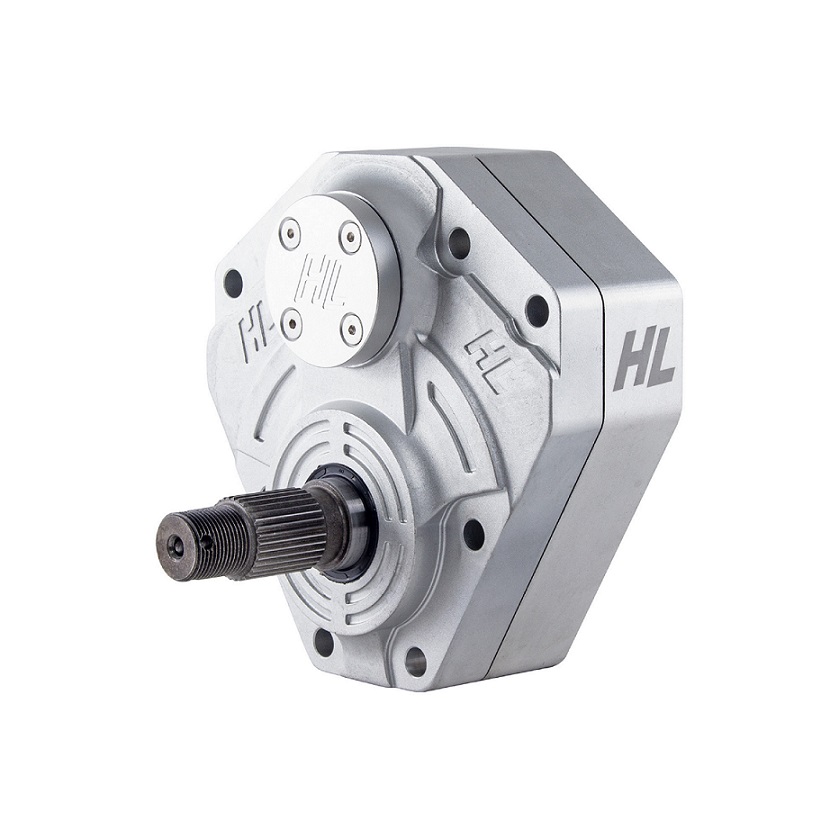

Gear Box:
- Strongest boxes on the market because forging produces a tougher piece of metal
- Forging is stronger than both cast and billet aluminum
- Extremely robust and give you more worry-free miles

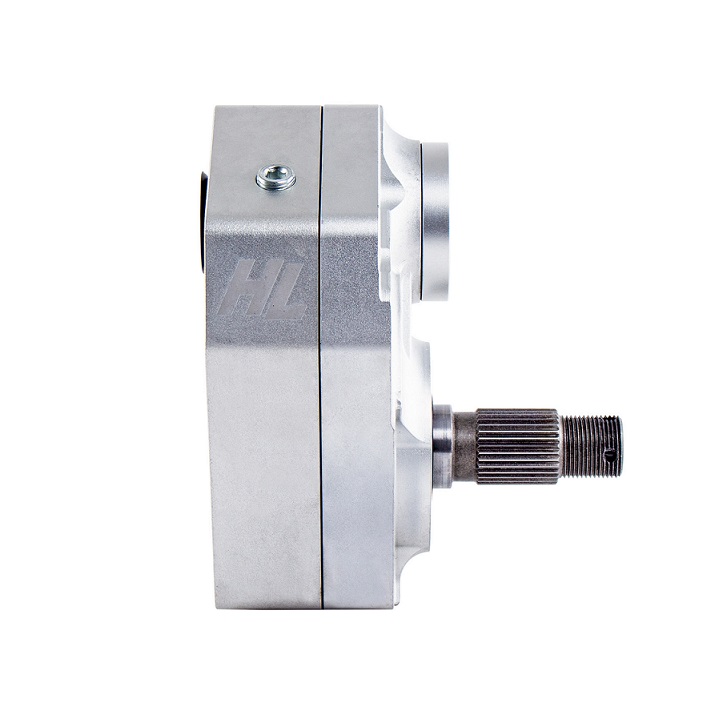

- Offers a plug for venting with an optional easy to install kit that will be available soon
- Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket and Seal:
- High density Kevlar fiber gaskets plus no additional sealant is needed
- Creep resistant plus oil and coolant resistant

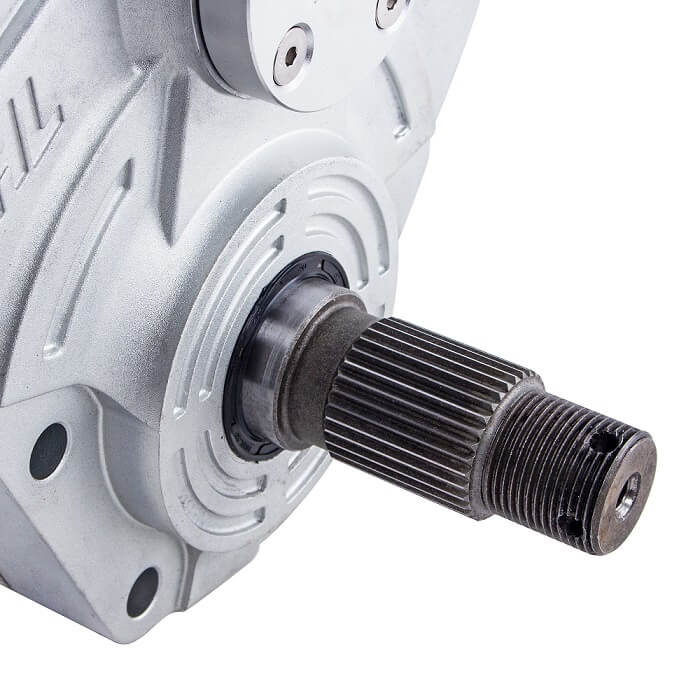

- Two oil seals on the spindle shaft for 100% more sealing area
- Dual seals prevent water intrusion and oil leaks
- True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection
Backing Plate:
- Strongest backing plates on the market
- 5/16” steel plate with bent flanges for strength and durability
- Welded gusset brackets and designed to factory off-set
- Works with most control arms that are built to factory hub specifications
Rotor:
- Precision ground stainless steel rotors
- Access holes for ease of assembly and disassembly
- Slotted rotor allows for heat dissipation and cooling
Gear:
- Alloy steel heat treating process increases overall internal and external strength
- CNC precision ground machining ensures excellent fitment and increased strength
- Controlled gear lapping for ease of installation and a quieter performance

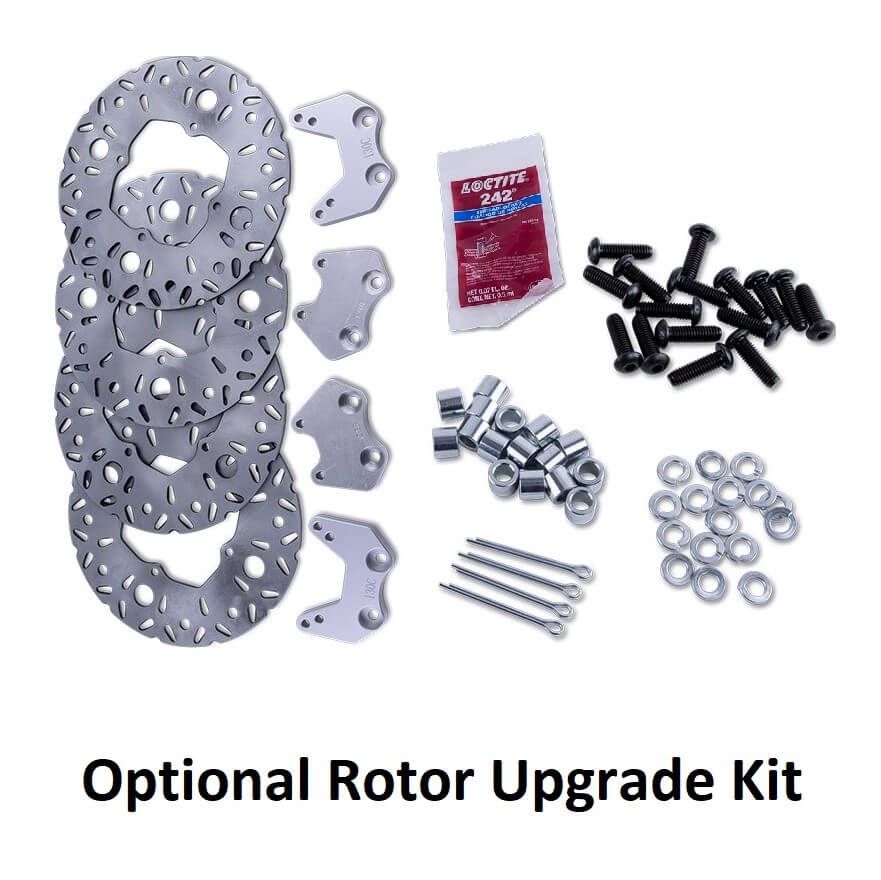

Optional Rotor Upgrade Kit:
- Requires 18" or larger wheels
- 18" wheels cannot exceed 4.5" backspacing
- 20" and larger wheels cannot exceed 5" backspacing
- Gives an additional 30% of leverage at the rotor
- Improves braking performance
- Gives more holding power at the wheel
- All components are designed for bolt-on replacement without modification
- (4) 13" precision ground stainless steel rotors
- (4) CNC precision machined caliper mounting brackets
- All mounting hardware and instructions included
Videos
Important Info
- Ships UPS ground in multiple boxes.
- Requires 14 inch or larger wheels.
- 14 inch factory wheels require 1 inch wheel spacers.
- 14 and 15 inch wheels cannot exceed 4.5 inch backspacing and 16 inch wheels cannot exceed 5 inch backspacing.
- Purchase an Optional Rotor Upgrade Kit - here
View Installation Instructions
View Rotor Upgrade Kit Instructions
