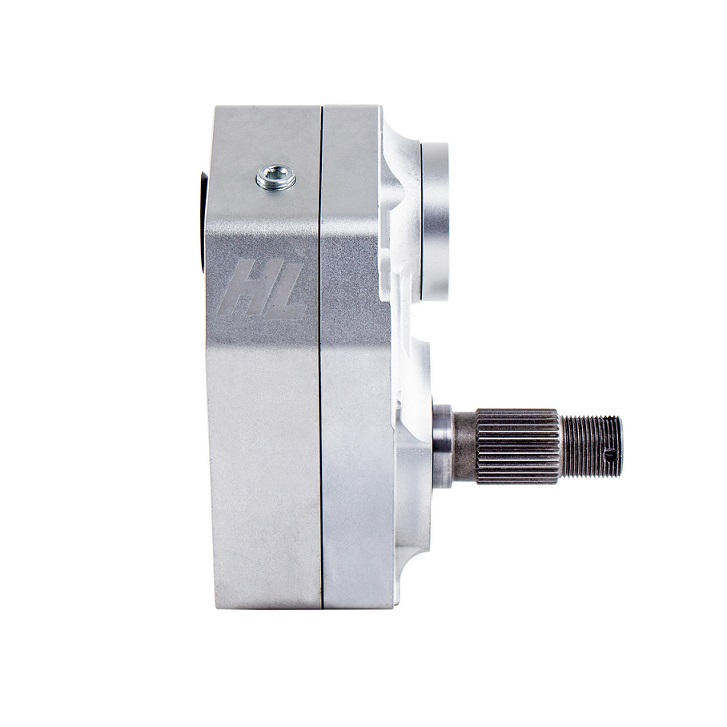

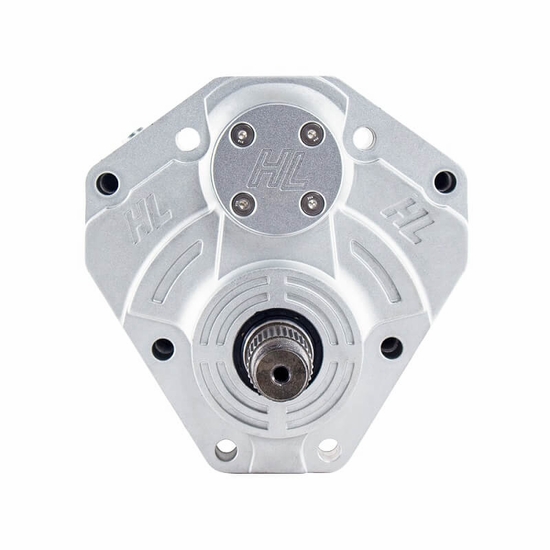

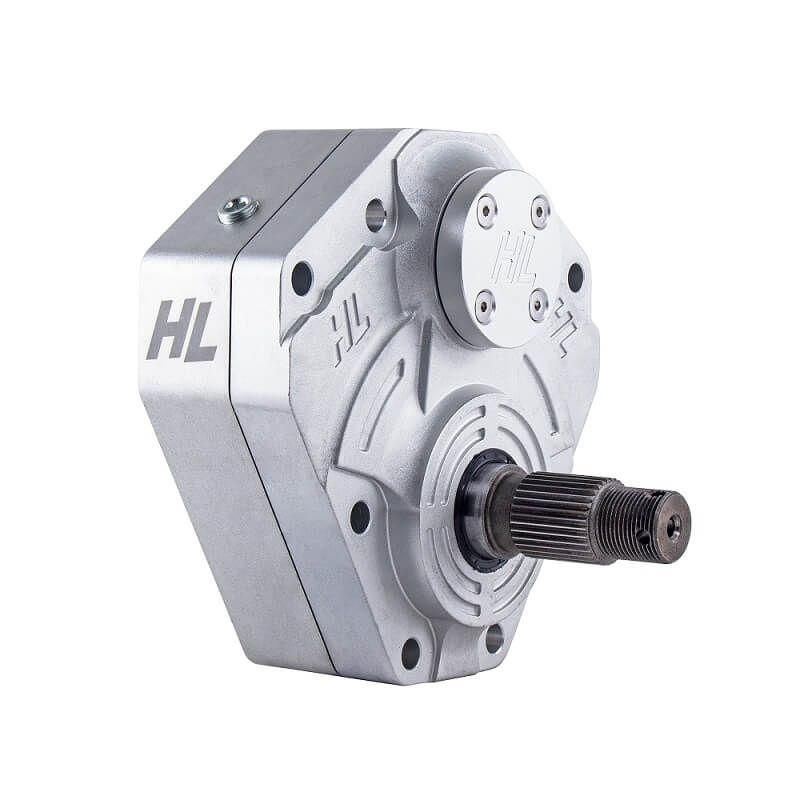

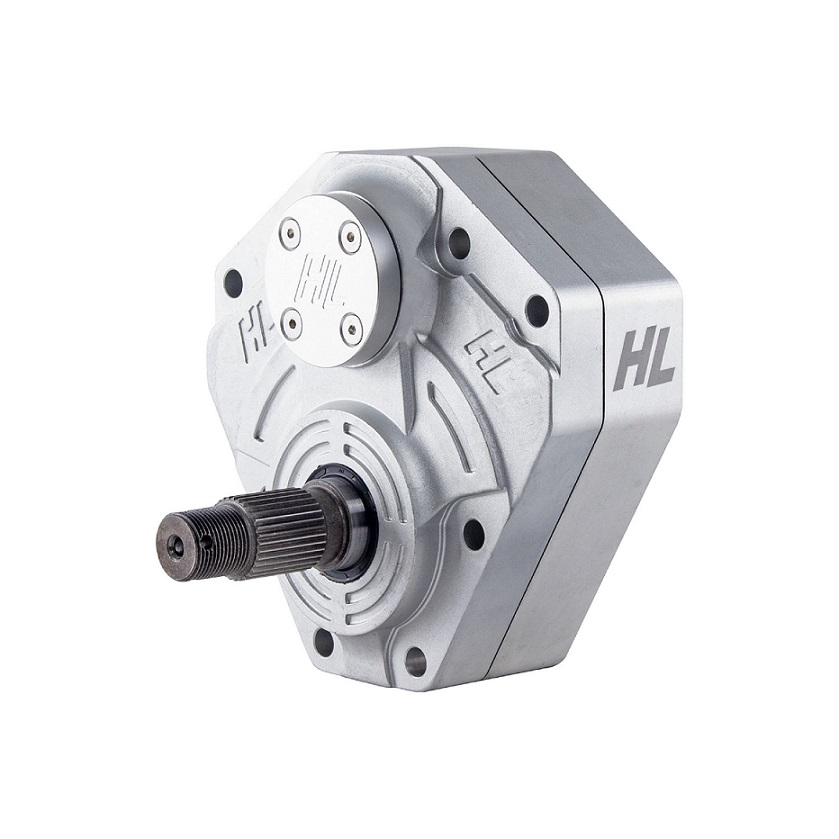

2018-20 Polaris Ranger 1000 High Lifter 30% Dual Idler 4 Inch Portal Gear Lift

High Lifter 30% Dual Idler 4 Inch Portal Gear Lift - 2018-20 Polaris Ranger XP 1000, 1000
High Lifter 30% Dual Idler 4 Inch Portal Gear Lift - 2018-20 Polaris Ranger XP 1000, 1000 - alt image 0
High Lifter 30% Dual Idler 4 Inch Portal Gear Lift - 2018-20 Polaris Ranger XP 1000, 1000 - alt image 1
High Lifter 30% Dual Idler 4 Inch Portal Gear Lift - 2018-20 Polaris Ranger XP 1000, 1000 - alt image 2
High Lifter 30% Dual Idler 4 Inch Portal Gear Lift - 2018-20 Polaris Ranger XP 1000, 1000 - alt image 3
High Lifter 30% Dual Idler 4 Inch Portal Gear Lift - 2018-20 Polaris Ranger XP 1000, 1000 - alt image 4
High Lifter 30% Dual Idler 4 Inch Portal Gear Lift - 2018-20 Polaris Ranger XP 1000, 1000 - alt image 5
High Lifter 30% Dual Idler 4 Inch Portal Gear Lift - 2018-20 Polaris Ranger XP 1000, 1000 - alt image 9
High Lifter 30% Dual Idler 4 Inch Portal Gear Lift - 2018-20 Polaris Ranger XP 1000, 1000
High Lifter 30% Dual Idler 4 Inch Portal Gear Lift - 2018-20 Polaris Ranger XP 1000, 1000
High Lifter 30% Dual Idler 4 Inch Portal Gear Lift - 2018-20 Polaris Ranger XP 1000, 1000
High Lifter 30% Dual Idler 4 Inch Portal Gear Lift - 2018-20 Polaris Ranger XP 1000, 1000
High Lifter 30% Dual Idler 4 Inch Portal Gear Lift - 2018-20 Polaris Ranger XP 1000, 1000
High Lifter 30% Dual Idler 4 Inch Portal Gear Lift - 2018-20 Polaris Ranger XP 1000, 1000
High Lifter 30% Dual Idler 4 Inch Portal Gear Lift - 2018-20 Polaris Ranger XP 1000, 1000
High Lifter 30% Dual Idler 4 Inch Portal Gear Lift - 2018-20 Polaris Ranger XP 1000, 1000

2018-20 Polaris Ranger 1000 High Lifter 30% Dual Idler 4 Inch Portal Gear Lift

Ships in 1-2 business days *SHARED SHIPPING*
Item #: 73-14477
Brand: High Lifter
$3,955.00
Quantity:
Eligible for ?

SSL Secure and
Privacy Guaranteed

  • SSL Secured

  • Rating

  • Expert Support

Product Description

Looking to take your Polaris Ranger 1000 or Ranger XP 1000 to the next level? Look no further than the High Lifter 30% Dual Idler 4 Inch Portal Gear Lift. With its cutting-edge design and unbeatable features, this gear lift is a must-have for any UTV enthusiast.

Featuring the strongest gear boxes on the market, this gear lift is built to withstand the toughest terrains. Thanks to the gear box forging, you can count on a tougher piece of metal compared to cast and billet aluminum. Plus, the High Lifter gear lift offers a plug for venting, with an optional easy-to-install kit coming soon.

When it comes to durability, this gear lift truly shines. Equipped with high density Kevlar fiber gaskets, you don't need any additional sealant to ensure a secure fit. The backing plates are also the strongest on the market, giving you peace of mind on every ride.

To further enhance its strength, the High Lifter gear lift boasts welded gusset brackets and is designed to factory off-set. With a 30% gearing extension, you'll experience improved engine braking, resulting in less frequent use of brakes and extended brake life.

Upgrade your off-roading experience with the High Lifter 30% Dual Idler 4 Inch Portal Gear Lift. Trust in the expertise of a leading UTV parts and accessories brand, and prepare to conquer any trail with ease.

Shared Shipping Program: You pay $40.00 shipping/handling and Side By Side Stuff will pay the rest.

Fitment

  • 2020 Polaris Ranger XP 1000 Winter Prep
  • 2020 Polaris Ranger XP 1000 Premium Ride Command
  • 2020 Polaris Ranger XP 1000 Northstar Ultimate
  • 2020 Polaris Ranger XP 1000 Northstar Ride Command
  • 2020 Polaris Ranger XP 1000 Northstar Premium
  • 2020 Polaris Ranger XP 1000 Northstar Edition
  • 2020 Polaris Ranger XP 1000 High Lifter Edition
  • 2020 Polaris Ranger XP 1000 EPS Texas Edition
  • 2020 Polaris Ranger XP 1000 EPS Premium
  • 2020 Polaris Ranger Crew XP 1000 Winter Prep
  • 2020 Polaris Ranger Crew XP 1000 Northstar Ultimate
  • 2020 Polaris Ranger Crew XP 1000 Northstar Ride Command
  • 2020 Polaris Ranger Crew XP 1000 Northstar Premium
  • 2020 Polaris Ranger Crew XP 1000 Northstar Edition
  • 2020 Polaris Ranger Crew XP 1000 High Lifter Edition
  • 2020 Polaris Ranger Crew XP 1000 EPS Texas Edition
  • 2020 Polaris Ranger Crew XP 1000 EPS Premium
  • 2020 Polaris Ranger Crew 1000 EPS Winter Prep
  • 2020 Polaris Ranger Crew 1000 EPS
  • 2020 Polaris Ranger Crew 1000 -
  • 2020 Polaris Ranger 1000 EPS Winter Prep
  • 2020 Polaris Ranger Crew XP 1000 Premium Ride Command
  • 2020 Polaris Ranger 1000 EPS
  • 2020 Polaris Ranger 1000 -
  • 2019 Polaris Ranger XP 1000 EPS Ride Command Edition
  • 2019 Polaris Ranger XP 1000 EPS Premium
  • 2019 Polaris Ranger XP 1000 EPS Northstar Edition
  • 2019 Polaris Ranger XP 1000 EPS High Lifter Edition
  • 2019 Polaris Ranger XP 1000 EPS Back Country Edition
  • 2019 Polaris Ranger Crew XP 1000 EPS Premium
  • 2019 Polaris Ranger Crew XP 1000 EPS Northstar Edition
  • 2019 Polaris Ranger Crew XP 1000 EPS High Lifter Edition
  • 2019 Polaris Ranger Crew XP 1000 EPS
  • 2019 Polaris Ranger Crew XP 1000 Back Country Edition
  • 2018 Polaris Ranger XP 1000 EPS Northstar Edition
  • 2018 Polaris Ranger XP 1000 EPS

Features

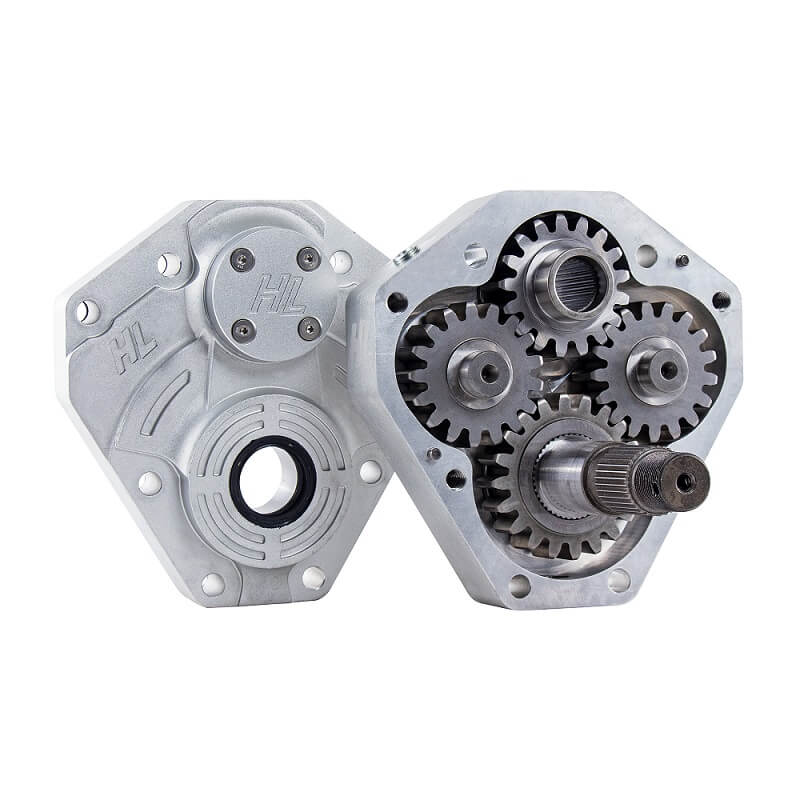

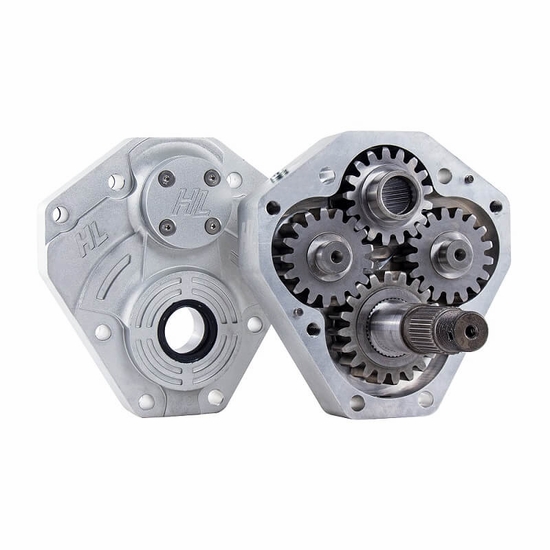

  • The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half
  • More reliable torque transfer
  • 30% gearing extends brake life by needing brakes less often due to greatly improved engine braking

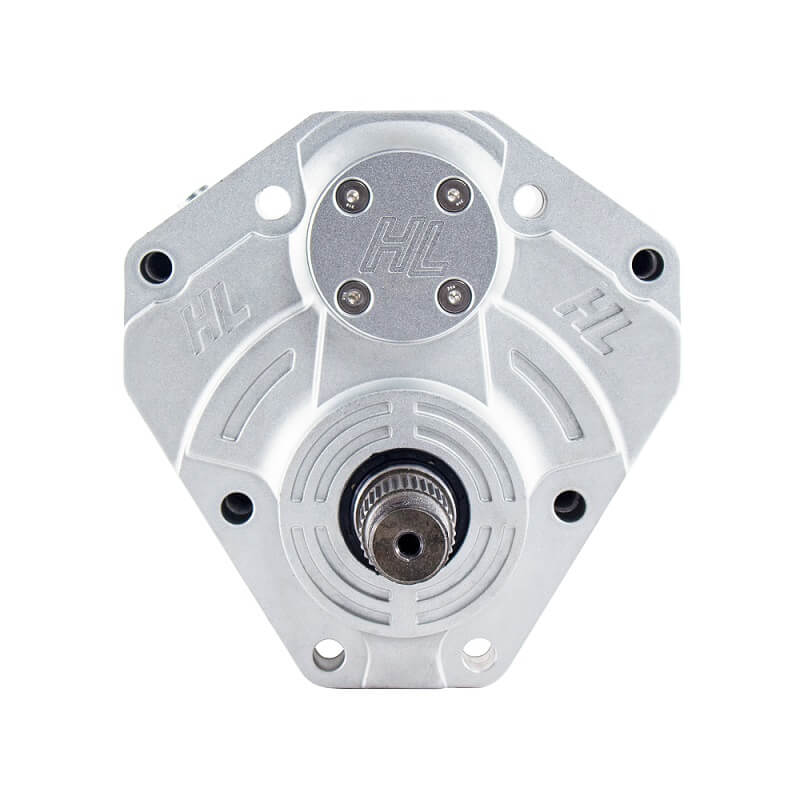

Gear Box:
  • Strongest boxes on the market because forging produces a tougher piece of metal
  • Forging is stronger than both cast and billet aluminum
  • Extremely robust and give you more worry-free miles
  • Offers a plug for venting with an optional easy to install kit that will be available soon
  • Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket and Seal:
  • High density Kevlar fiber gaskets plus no additional sealant is needed
  • Creep resistant plus oil and coolant resistant

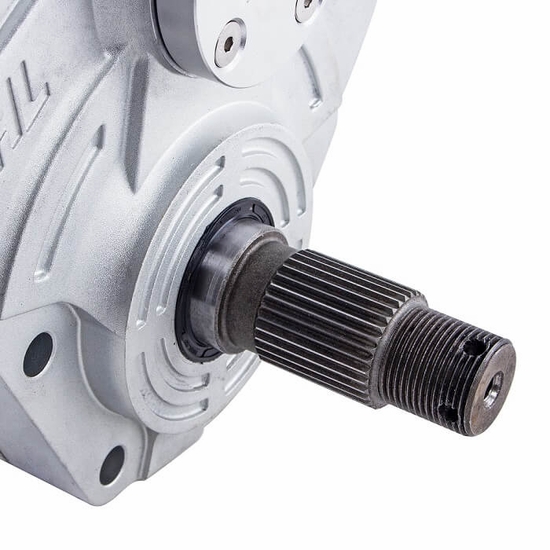

  • Two oil seals on the spindle shaft for 100% more sealing area
  • Dual seals prevent water intrusion and oil leaks
  • True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

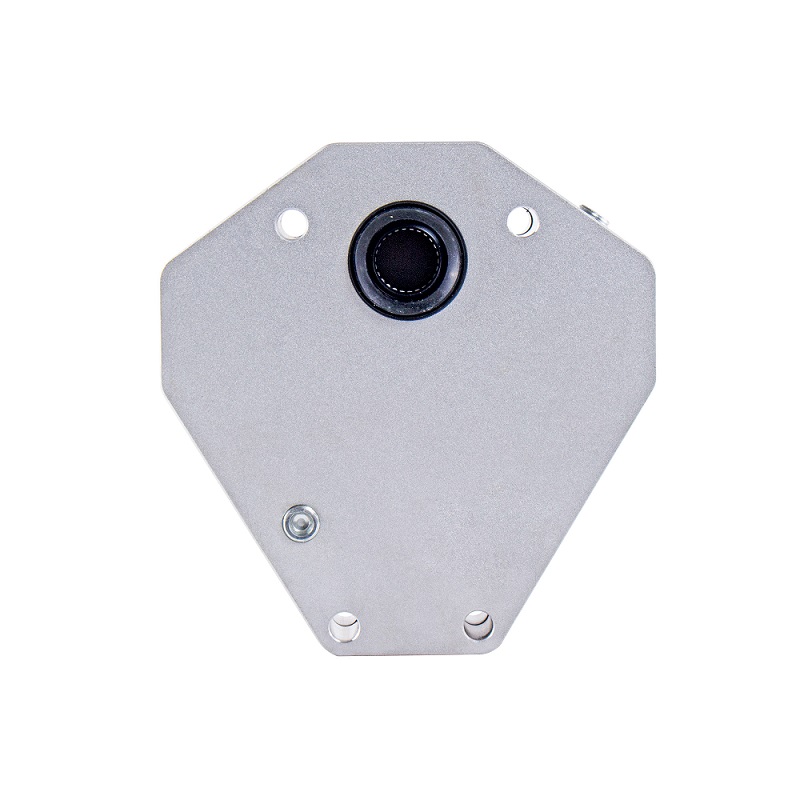

Backing Plate:
  • Strongest backing plates on the market
  • 5/16” steel plate with bent flanges for strength and durability
  • Welded gusset brackets and designed to factory off-set
  • Works with most control arms that are built to factory hub specifications

Rotor:
  • Precision ground stainless steel rotors
  • Access holes for ease of assembly and disassembly
  • Slotted rotor allows for heat dissipation and cooling

Gear:
  • Alloy steel heat treating process increases overall internal and external strength
  • CNC precision ground machining ensures excellent fitment and increased strength
  • Controlled gear lapping for ease of installation and a quieter performance

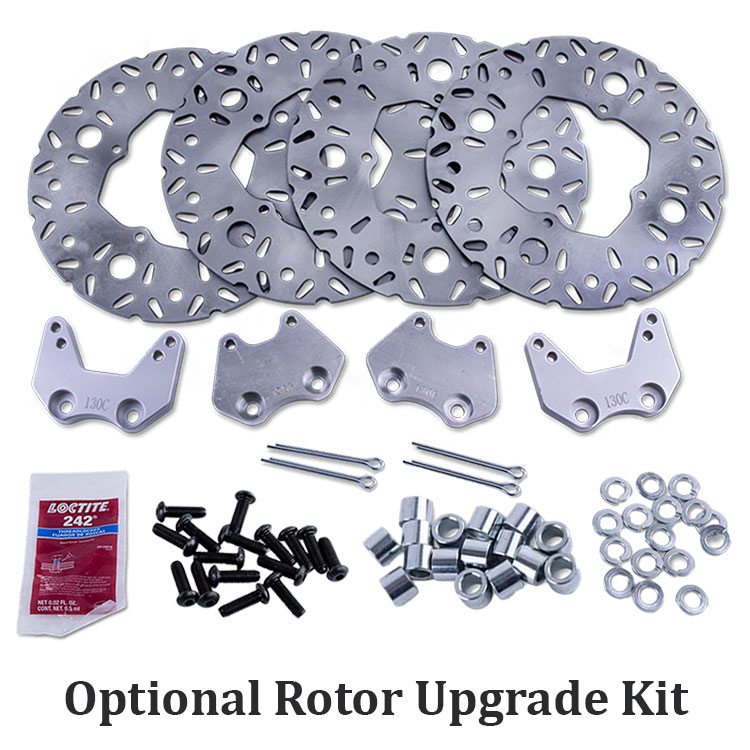

Optional Rotor Upgrade Kit:
  • Requires 18" or larger wheels
  • 18" wheels cannot exceed 4.5" backspacing
  • 20" and larger wheels cannot exceed 5" backspacing
  • Gives an additional 30% of leverage at the rotor
  • Improves braking performance
  • Gives more holding power at the wheel
  • All components are designed for bolt-on replacement without modification
  • (4) 13" precision ground stainless steel rotors
  • (4) CNC precision machined caliper mounting brackets
  • All mounting hardware and instructions included


Videos

Important Info

  • Ships UPS ground in multiple boxes.
  • Requires 14 inch or larger wheels.
  • 14 inch factory wheels require 1 inch wheel spacers.
  • 14 and 15 inch wheels cannot exceed 4.5 inch backspacing and 16 inch wheels cannot exceed 5 inch backspacing.
  • Purchase an Optional Rotor Upgrade Kit - here


 View Installation Instructions

 View Rotor Upgrade Kit Instructions

 View Warranty Information
