2021-24 Polaris Ranger XP 1000 Special Editions 30% Dual Idler 4 Inch Portal Gear Lift
For 2021-24 Full Size Ranger
2021-24 Polaris Ranger XP 1000 Special Editions 30% Dual Idler 4 Inch Portal Gear Lift
For 2021-24 Full Size Ranger
SSL Secured
Expert Support
Product Description
Some people think of a Polaris Ranger and immediately imagine a farm vehicle that can do anything a one-ton can do with more agility. However, it didn't take the Powersports community very long to uncover the sheer grit these UTVs have when it comes to white-knuckling massive mud pits. Unfortunately, to really get in there deep, your first step was to get big aggressive tires that laugh in the face of these bogs and when that happened... down went your torque. To make it through, you need that power, which is where this Ranger XP 1000 Dual Idler 4 Inch Portal Gear Lift will change your entire ride experience.
The just of the matter is, this portal gear lift will add some much-needed inches to accommodate larger tires by relocating the hub. That is where you get more inches. However, unlike a standard suspension lift kit, the elevation takes place in a totally different location. The perk to all of that is zero change to the factory steering geometry. Above increasing ground-clearance, this kit provides a gear reduction that lets you drop it down low to put the newly established tread monsters in motion. Ultimately, that is where you get your torque and power gains. Now that you know what the Ranger 1000 portal gear lift will do for your offroad game, let's delve into what you get with the system and what the durability factor is.
Just like everything else, High Lifter stamped, this Polaris Ranger portal kit features outstanding construction from the gearbox to the rotor and everything in between. In fact, High Lifter boasts their gearbox and backing plate are the strongest in the industry fabricated from high-grade metals using advanced technology. Even the gasket is built for battle from high-density Kevlar fiber with sealing compounds that can handle serious ride abuse. This entire SxS portal gear lift is engineered for greatness. Isn't that what you want powering your mean machine?
Shared Shipping Program: You pay $25.00 shipping/handling and Side By Side Stuff will pay the rest.
The just of the matter is, this portal gear lift will add some much-needed inches to accommodate larger tires by relocating the hub. That is where you get more inches. However, unlike a standard suspension lift kit, the elevation takes place in a totally different location. The perk to all of that is zero change to the factory steering geometry. Above increasing ground-clearance, this kit provides a gear reduction that lets you drop it down low to put the newly established tread monsters in motion. Ultimately, that is where you get your torque and power gains. Now that you know what the Ranger 1000 portal gear lift will do for your offroad game, let's delve into what you get with the system and what the durability factor is.
Just like everything else, High Lifter stamped, this Polaris Ranger portal kit features outstanding construction from the gearbox to the rotor and everything in between. In fact, High Lifter boasts their gearbox and backing plate are the strongest in the industry fabricated from high-grade metals using advanced technology. Even the gasket is built for battle from high-density Kevlar fiber with sealing compounds that can handle serious ride abuse. This entire SxS portal gear lift is engineered for greatness. Isn't that what you want powering your mean machine?
Shared Shipping Program: You pay $25.00 shipping/handling and Side By Side Stuff will pay the rest.
Fitment
- 2024 Polaris Ranger XP 1000 NorthStar Ultimate
- 2024 Polaris Ranger XP 1000 NorthStar Trail Boss
- 2024 Polaris Ranger Crew XP 1000 NorthStar Ultimate
- 2024 Polaris Ranger Crew XP 1000 NorthStar Trail Boss
- 2023 Polaris Ranger XP 1000 Northstar Ultimate
- 2023 Polaris Ranger XP 1000 NorthStar Trail Boss
- 2023 Polaris Ranger Crew XP 1000 Northstar Ultimate
- 2023 Polaris Ranger Crew XP 1000 NorthStar Trail Boss
- 2022 Polaris Ranger XP 1000 Waterfowl
- 2022 Polaris Ranger XP 1000 Trail Boss
- 2022 Polaris Ranger XP 1000 Northstar Ultimate
- 2022 Polaris Ranger XP 1000 NorthStar Trail Boss
- 2022 Polaris Ranger XP 1000 High Lifter Edition
- 2022 Polaris Ranger XP 1000 Big Game
- 2022 Polaris Ranger Crew XP 1000 Waterfowl
- 2022 Polaris Ranger Crew XP 1000 Trail Boss
- 2022 Polaris Ranger Crew XP 1000 Texas Edition
- 2022 Polaris Ranger Crew XP 1000 Northstar Ultimate
- 2022 Polaris Ranger Crew XP 1000 NorthStar Trail Boss
- 2022 Polaris Ranger Crew XP 1000 Northstar Big Game Edition
- 2022 Polaris Ranger Crew XP 1000 High Lifter Edition
- 2022 Polaris Ranger Crew XP 1000 Big Game Edition
- 2021 Polaris Ranger XP 1000 Waterfowl
- 2021 Polaris Ranger XP 1000 Trail Boss
- 2021 Polaris Ranger XP 1000 Northstar Ultimate
- 2021 Polaris Ranger XP 1000 NorthStar Trail Boss
- 2021 Polaris Ranger XP 1000 Northstar Premium
- 2021 Polaris Ranger XP 1000 High Lifter Edition
- 2021 Polaris Ranger XP 1000 EPS Texas Edition
- 2021 Polaris Ranger XP 1000 Big Game
- 2021 Polaris Ranger Crew XP 1000 Waterfowl
- 2021 Polaris Ranger Crew XP 1000 Trail Boss
- 2021 Polaris Ranger Crew XP 1000 Northstar Ultimate
- 2021 Polaris Ranger Crew XP 1000 NorthStar Trail Boss
- 2021 Polaris Ranger Crew XP 1000 Northstar Premium
- 2021 Polaris Ranger Crew XP 1000 High Lifter Edition
- 2021 Polaris Ranger Crew XP 1000 EPS Texas Edition
- 2021 Polaris Ranger Crew XP 1000 Big Game Edition
Features

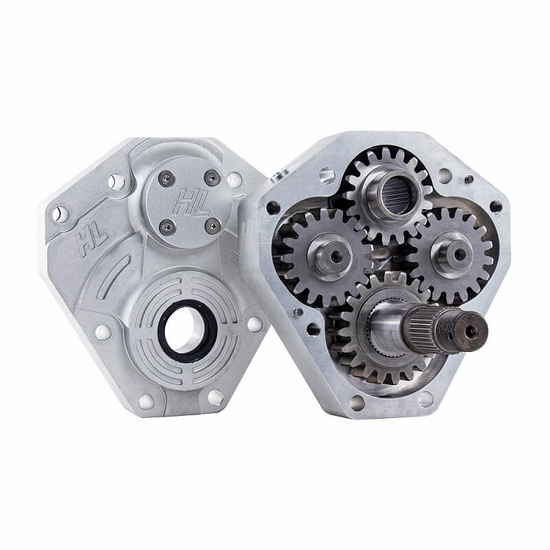

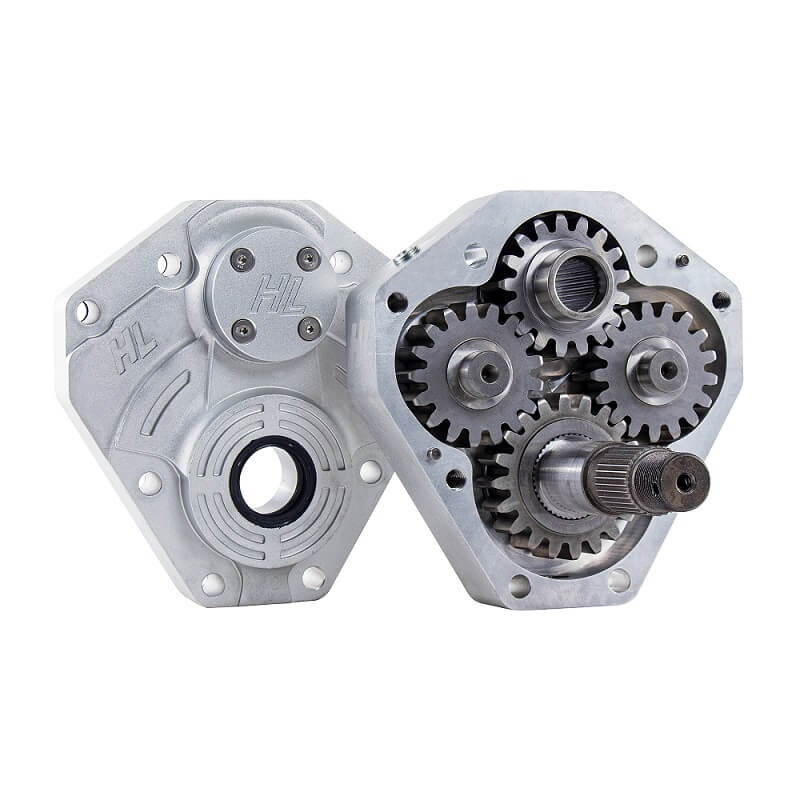

- The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half
- More reliable torque transfer
- 30% gearing extends brake life by needing brakes less often due to greatly improved engine braking

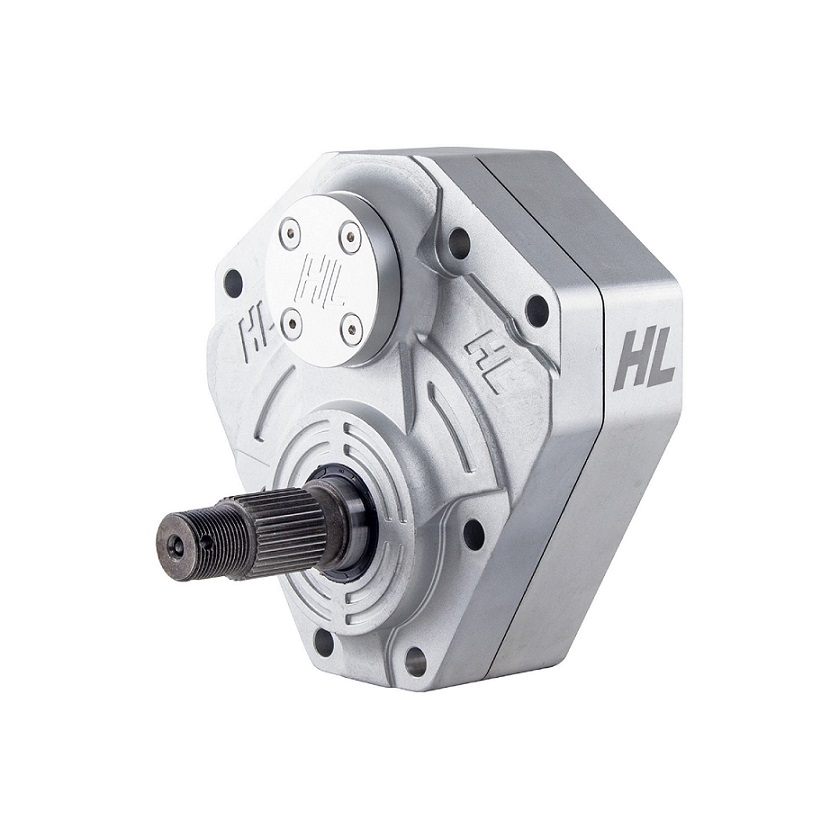

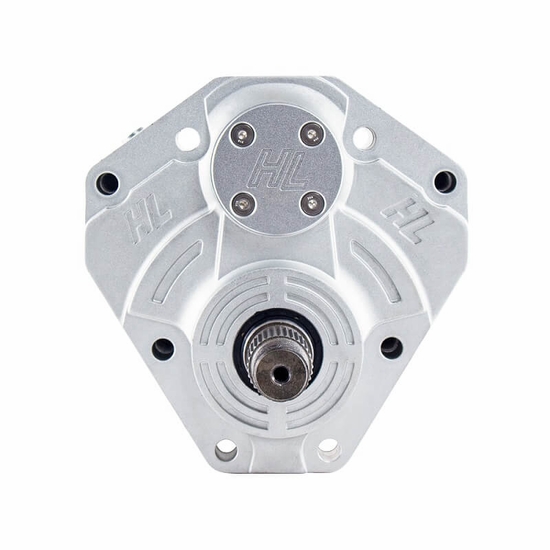

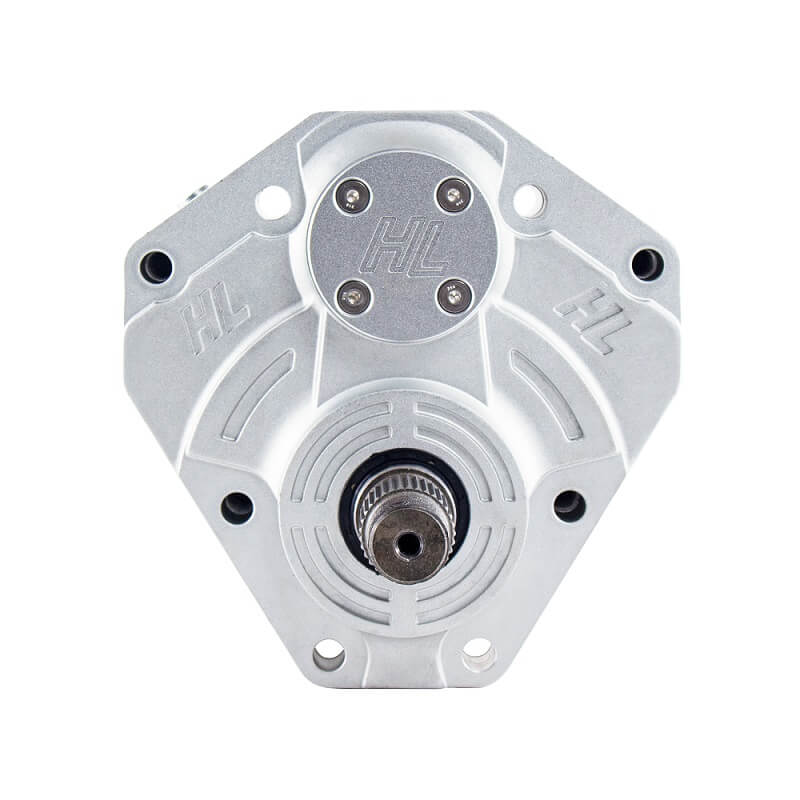

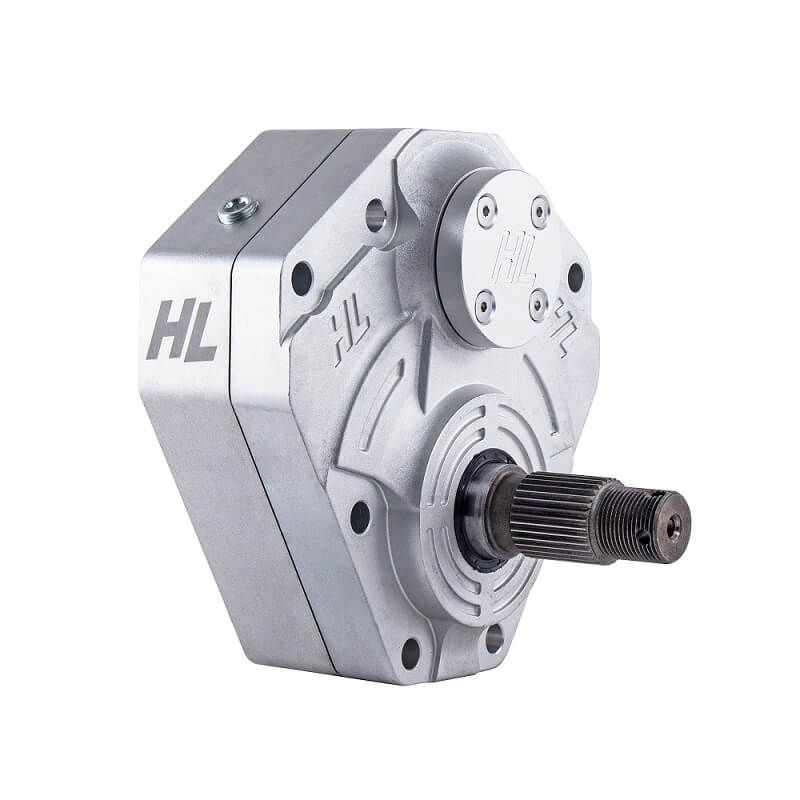

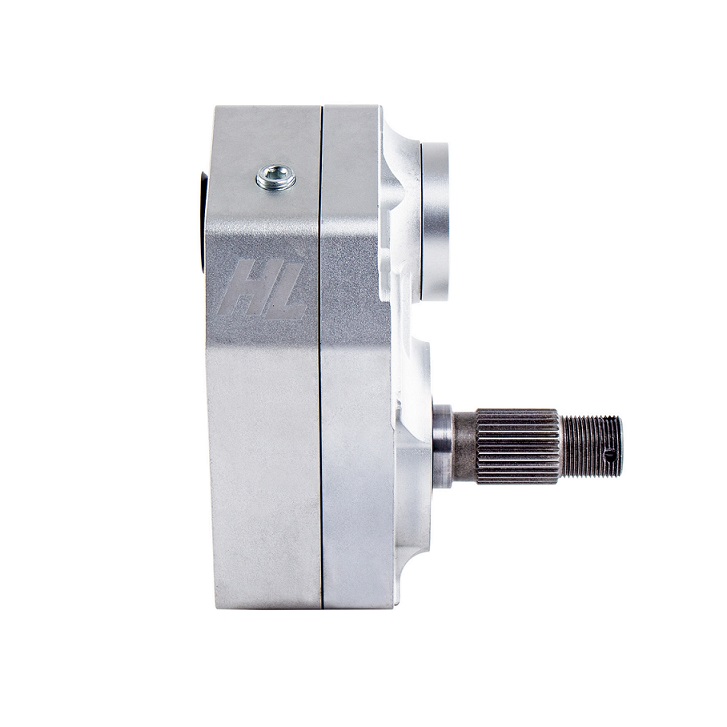

Gear Box:
- Strongest boxes on the market because forging produces a tougher piece of metal
- Forging is stronger than both cast and billet aluminum
- Extremely robust and give you more worry-free miles
- Offers a plug for venting with an optional easy to install kit that will be available soon
- Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket and Seal:
- High density Kevlar fiber gaskets plus no additional sealant is needed
- Creep resistant plus oil and coolant resistant

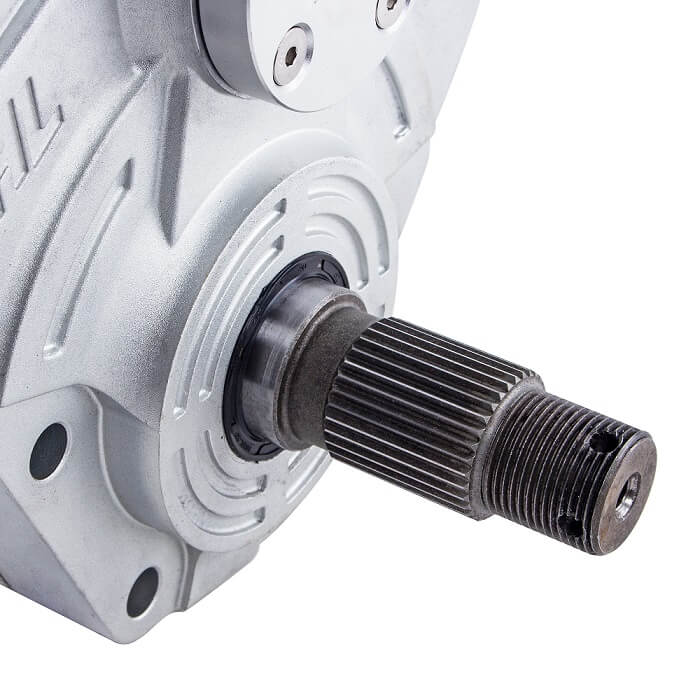

- Two oil seals on the spindle shaft for 100% more sealing area
- Dual seals prevent water intrusion and oil leaks
- True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

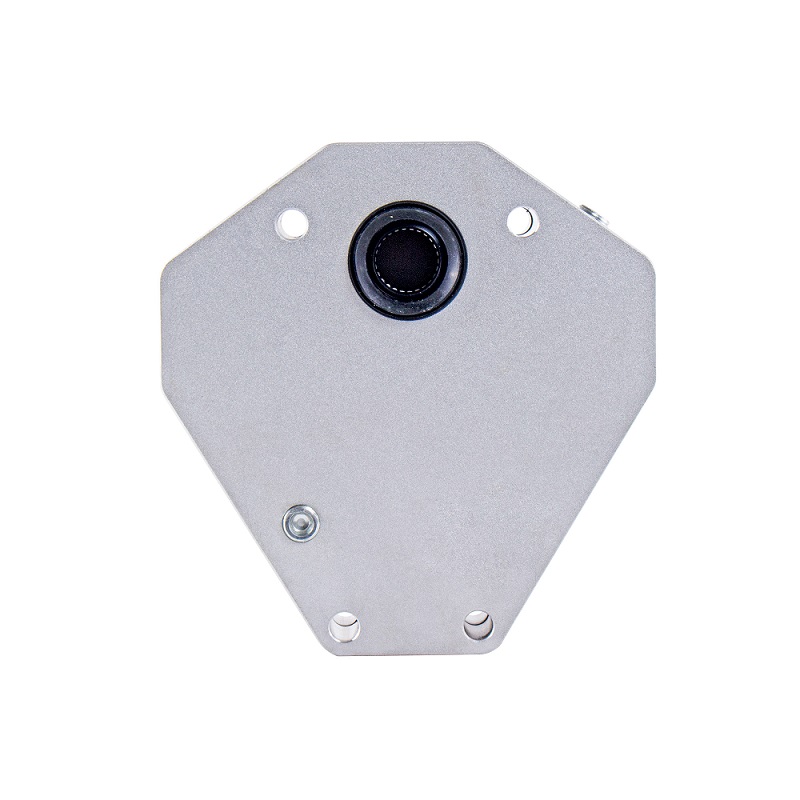

Backing Plate:
- Strongest backing plates on the market
- 5/16 inch steel plate with bent flanges for strength and durability
- Welded gusset brackets and designed to factory off-set
- Works with most control arms that are built to factory hub specifications
Rotor:
- Precision ground stainless steel rotors
- Access holes for ease of assembly and disassembly
- Slotted rotor allows for heat dissipation and cooling
Gear:
- Alloy steel heat treating process increases overall internal and external strength
- CNC precision ground machining ensures excellent fitment and increased strength
- Controlled gear lapping for ease of installation and a quieter performance

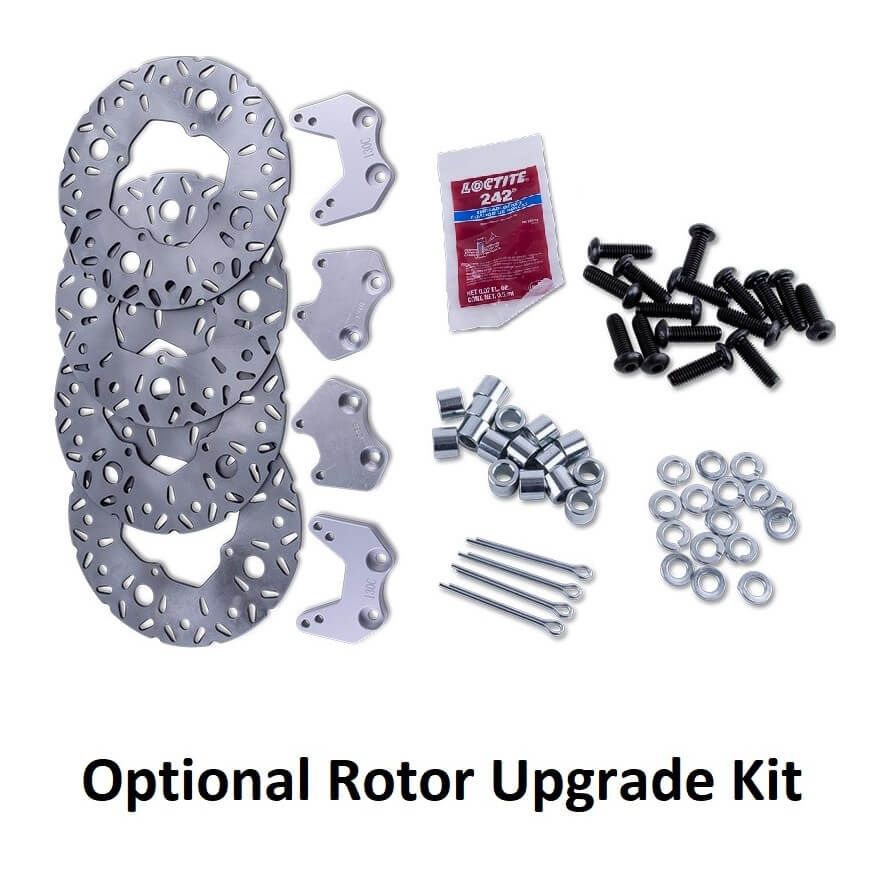

Optional Rotor Upgrade Kit:
- Requires 18" or larger wheels
- 18" wheels cannot exceed 4.5" backspacing
- 20" and larger wheels cannot exceed 5" backspacing
- Gives an additional 30% of leverage at the rotor
- Improves braking performance
- Gives more holding power at the wheel
- All components are designed for bolt-on replacement without modification
- (4) 13" precision ground stainless steel rotors
- (4) CNC precision machined caliper mounting brackets
- All mounting hardware and instructions included
Videos
Important Info
- Ships UPS ground in multiple boxes.
- Requires 14 inch or larger wheels.
- 14 inch factory wheels require 1 inch wheel spacers.
- Ships UPS ground in multiple boxes.
- Requires 14 inch or larger wheels.
- 14 inch factory wheels require 1 inch wheel spacers.
- 14 and 15 inch wheels cannot exceed 4.5 inch backspacing and 16 inch wheels cannot exceed 5 inch backspacing.
- Purchase an Optional Rotor Upgrade Kit - here
View Installation Instructions
View Rotor Upgrade Kit Instructions
