Get a precise and easy wheel alignment with High Lifter’s Alignment Tool with Casters.

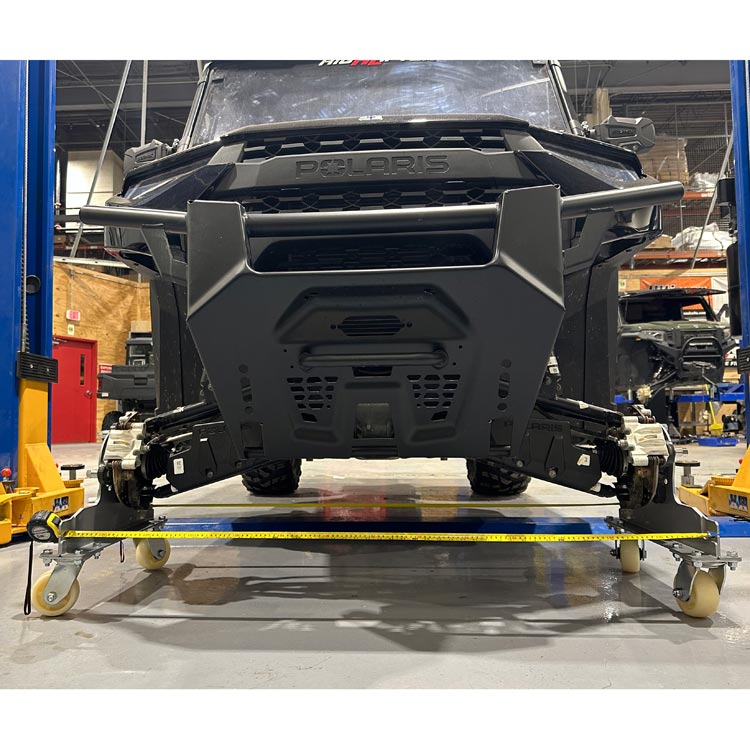

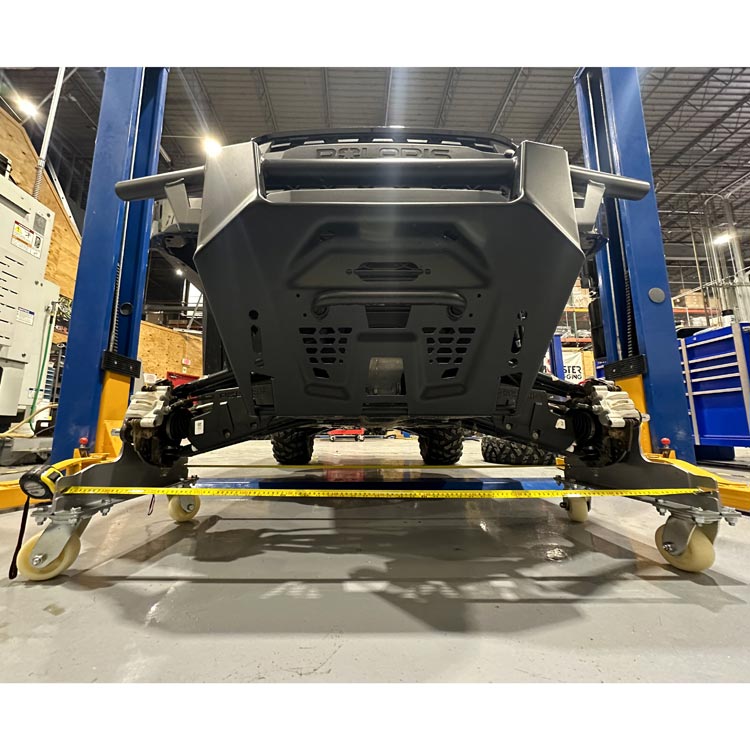

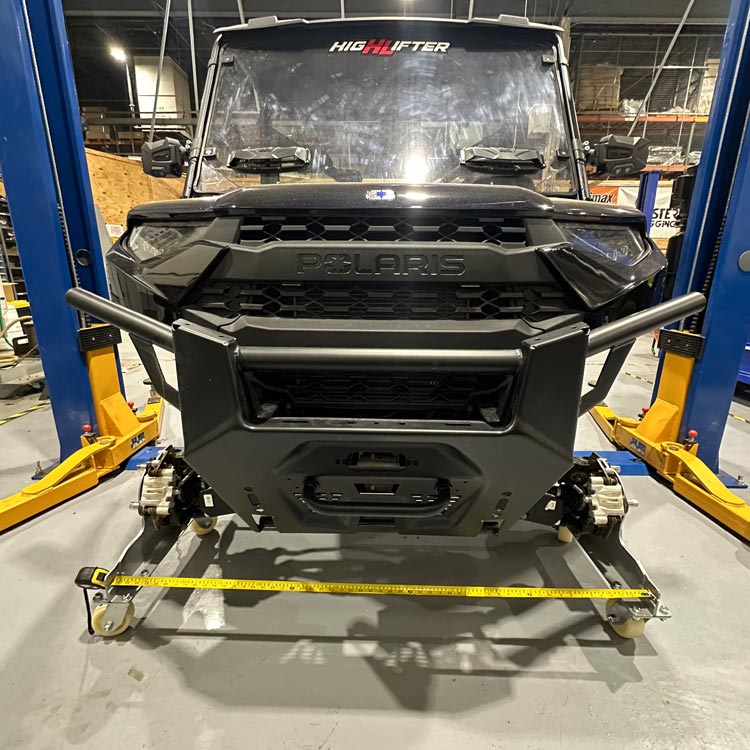

Maintaining proper wheel alignment is crucial for the stability, handling, and tire longevity of your ATV or UTV. Traditional alignment tools often require the tires to be removed and the vehicle to be jacked up, making it difficult to achieve accurate measurements. The High Lifter Alignment Tool with Casters revolutionizes this process, allowing you to measure suspension at normal ride height with ease.
Features & Benefits
- A More Accurate Measurement: The tool allows for precise alignment measurements by keeping the vehicle at its normal ride height, eliminating inaccuracies caused by full suspension extension.

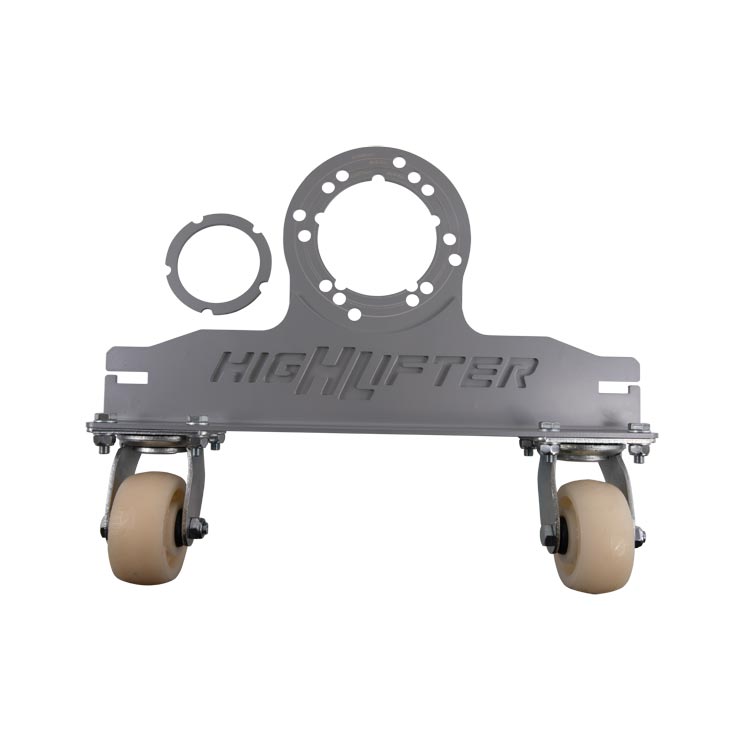

- Durable Construction: Made from 3/16” steel with a powder-coated finish, the alignment plates are designed to withstand heavy use and provide a long-lasting, easy-to-clean surface.
- Heavy-Duty Nylon Casters: The casters attached to the base of the plates enable smooth movement and easy settling of the suspension back to its normal position.

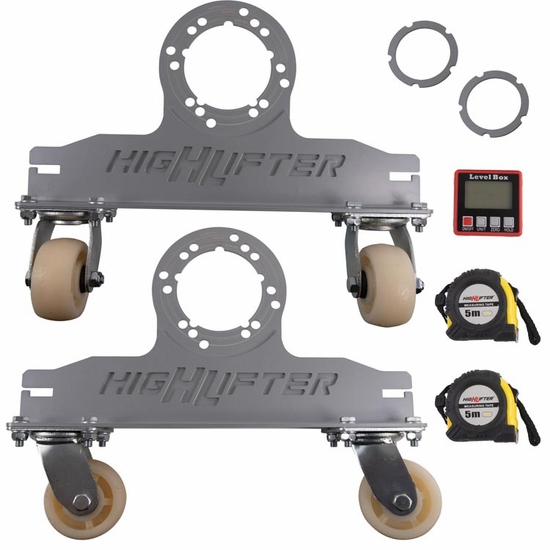

- Universal Fit: This tool fits all current UTV and most ATV bolt patterns, including 5 & 6 lug configurations, making it versatile for various models.

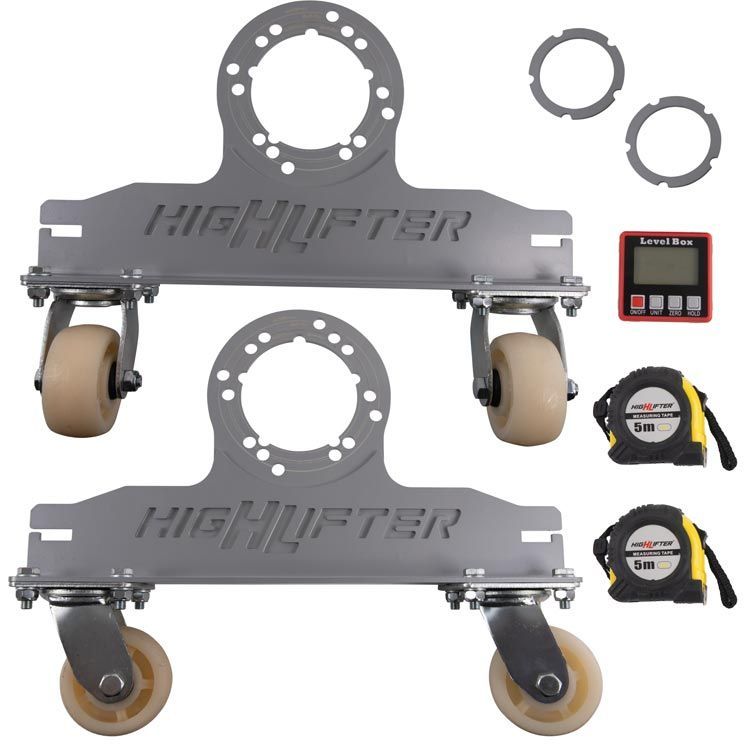

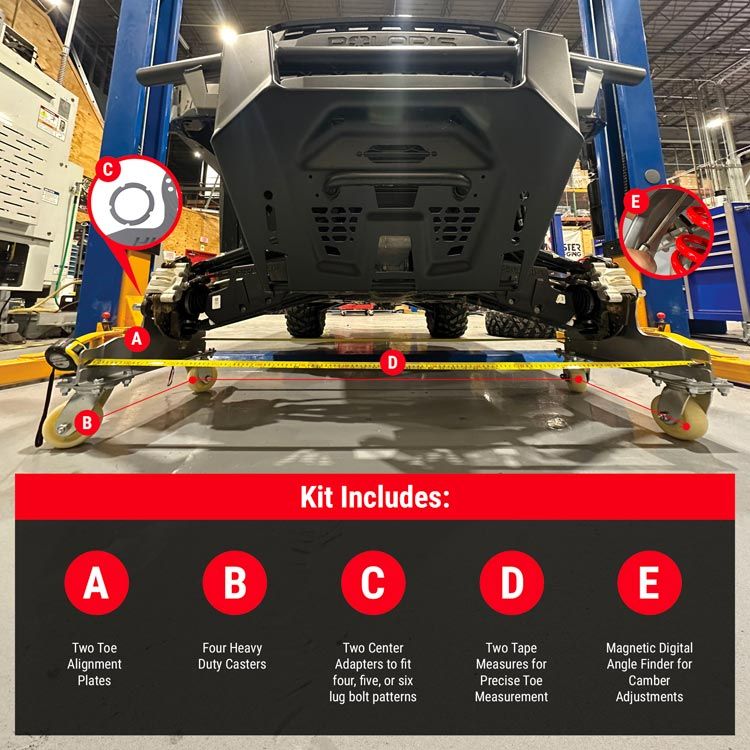

- Precision Toe and Camber Adjustment: The tool includes a magnetic digital angle finder with 0.1-degree accuracy and two tape measures, allowing for exact toe and camber measurements.
- Easy to Use: Simply bolt the plates to the wheel hubs and use the provided tools to make your adjustments, making garage alignments a breeze.
- Enhanced Vehicle Performance: Proper alignment prevents uneven tire wear, corrects offset steering wheels, and eliminates steering pull while driving.
Frequently Asked Questions
- Does the alignment tool work on both front and rear wheels? Yes, if your ATV or UTV has any adjustable suspension components in the rear this tool can be used to dial in your rear alignment as well.
- Can this tool help correct a steering wheel that is off-center? Yes, proper alignment using this tool can help correct an off-center steering wheel by ensuring that all wheels are aligned accurately.
- How does this tool compare to other alignment tools on the market? While other alignment tools require your machine to be off the ground with the suspension dexompressed. The Heavy-Duty Nylon Casters on this new High Lifter Alignment Tool allow you check the alignment with your suspension settled at ride height, giving much more accurate measurements and saving you time.
- What are the common signs that my ATV/UTV needs an alignment? Common signs include uneven tire wear, the vehicle pulling to one side, a crooked steering wheel, and unusual handling characteristics. Checking your alignment regularly can prevent these issues.
Order your High Lifter Alignment Tool with Casters today to achieve precise ATV/UTV alignment with ease and accuracy!
Fitment
- Universal
Features

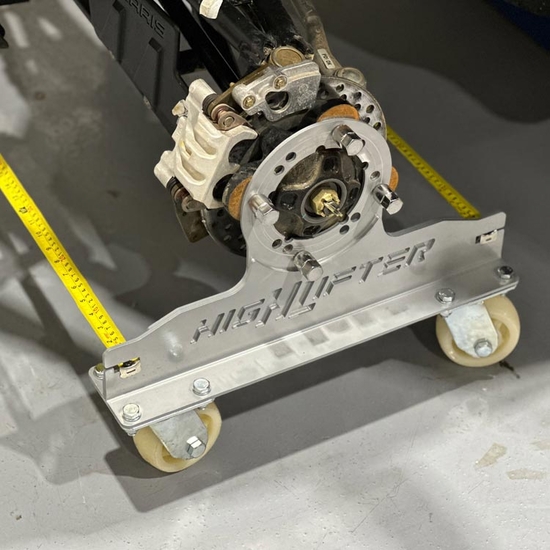

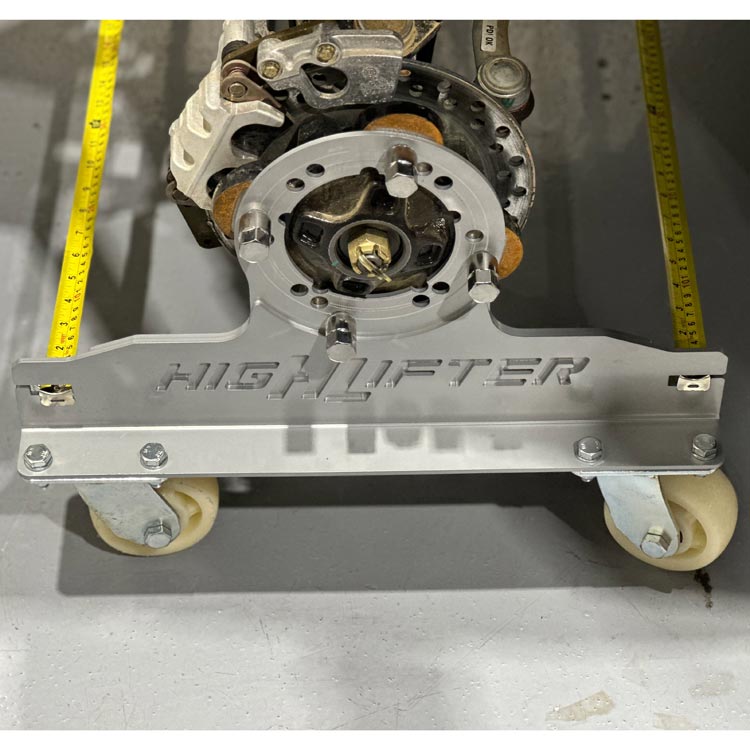

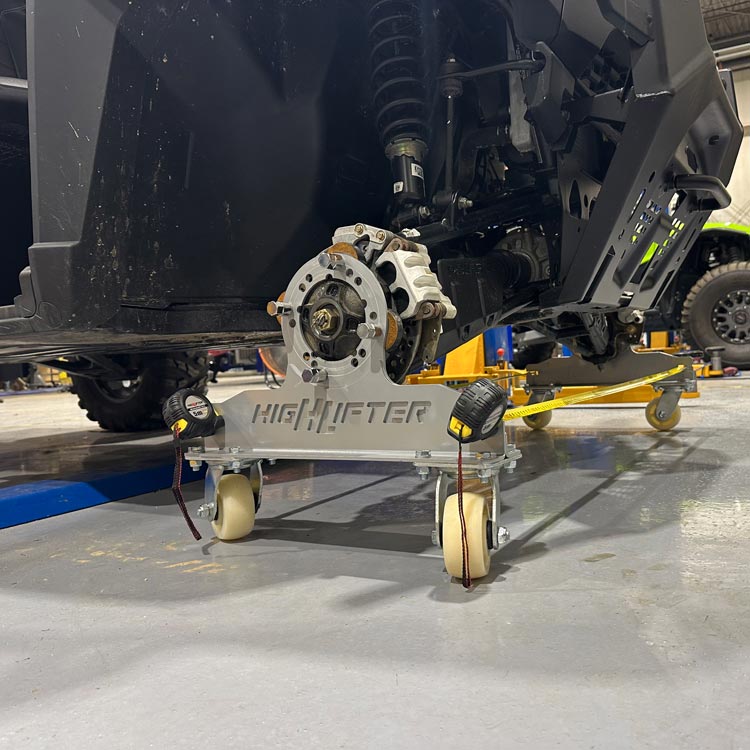

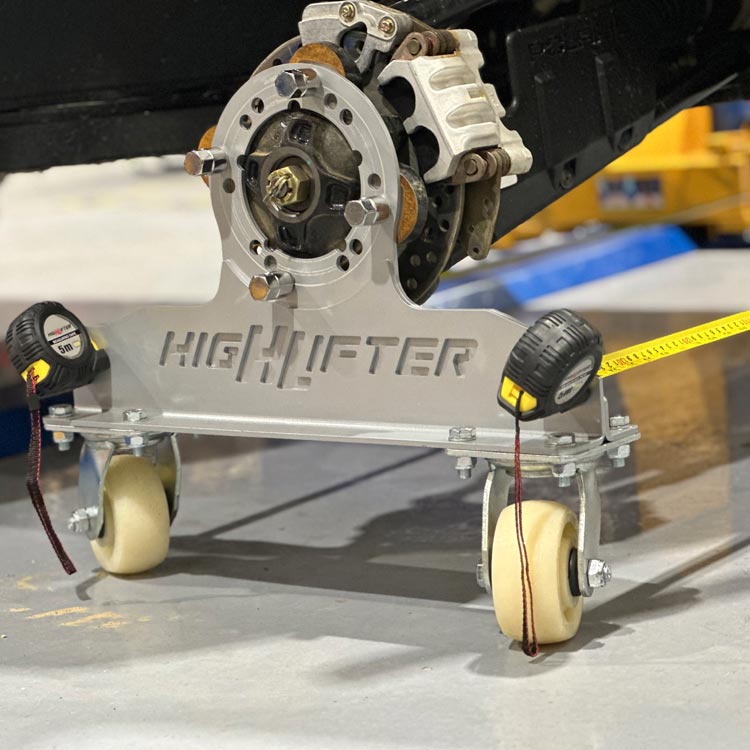

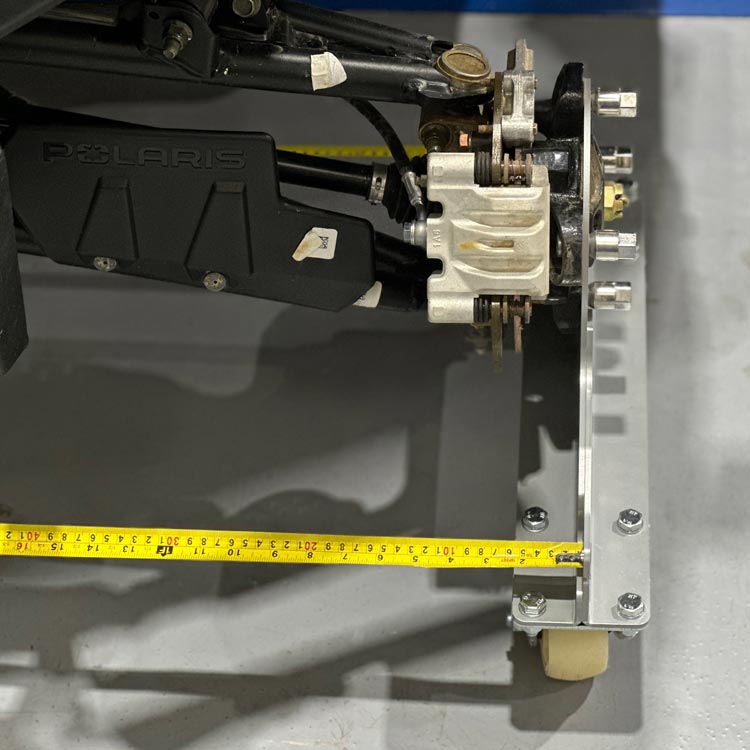

- Easy to use - bolt plates to the hubs on each side, front or rear.

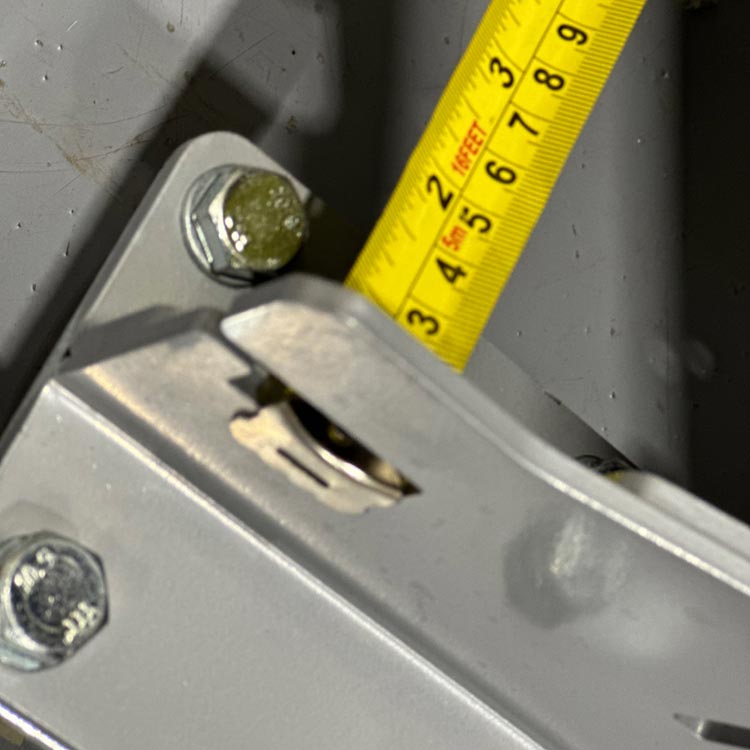

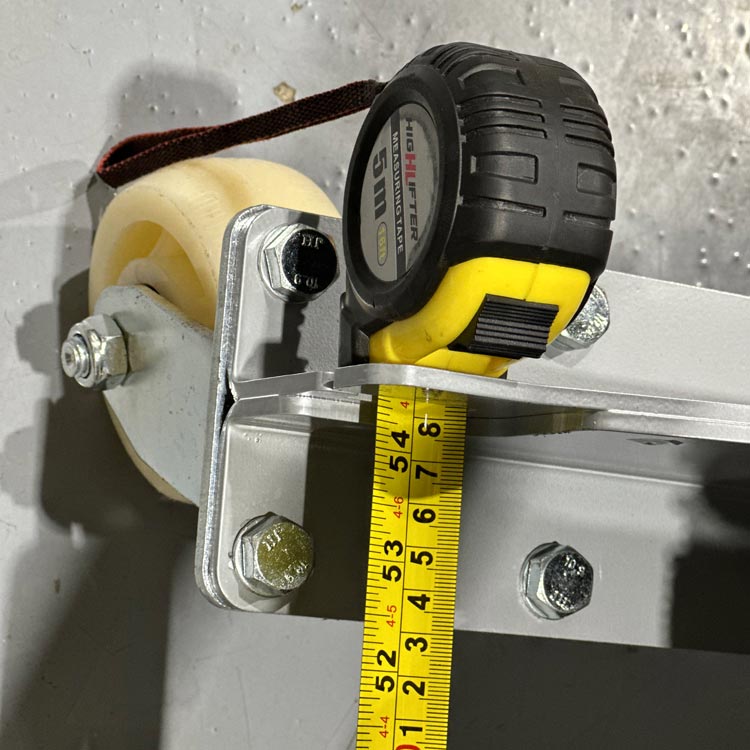

- Measure TOE directly using the 2 tape measures included in the kit.
- Measure CAMBER using the magnetic, digital angle finder that is provided in the kit.
- More accuracy set the camber on trailing arms and radius bars.
- Aligning a vehicle after replacing suspension components (tie rods, control arms, etc.)
- Making camber/toe alignment changes in your garage a breeze
- Adjusting alignment to your desired specifications
- Prevents uneven wear pattern on tires.
- Correct offset steering wheel.
- Correct steering pull while driving.
Videos
Important Info

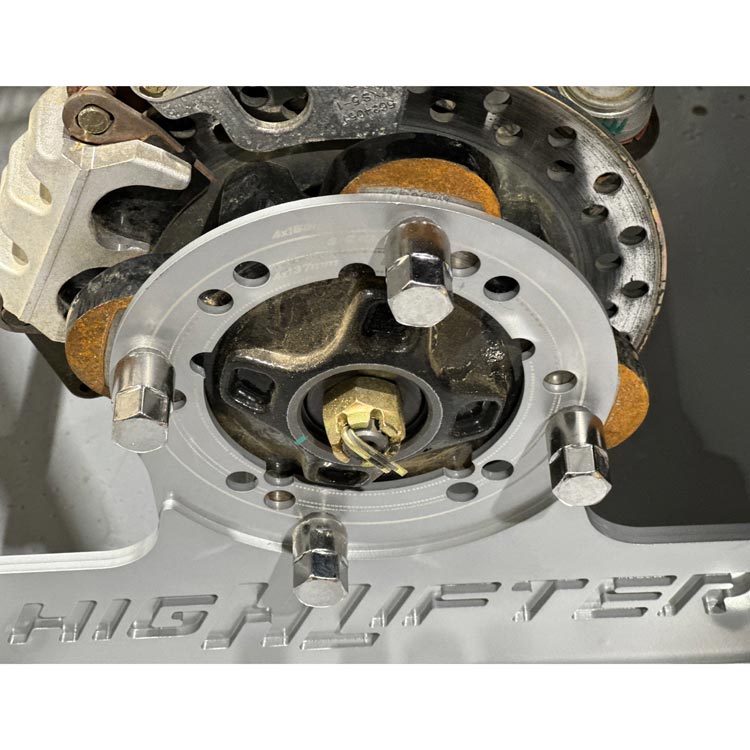

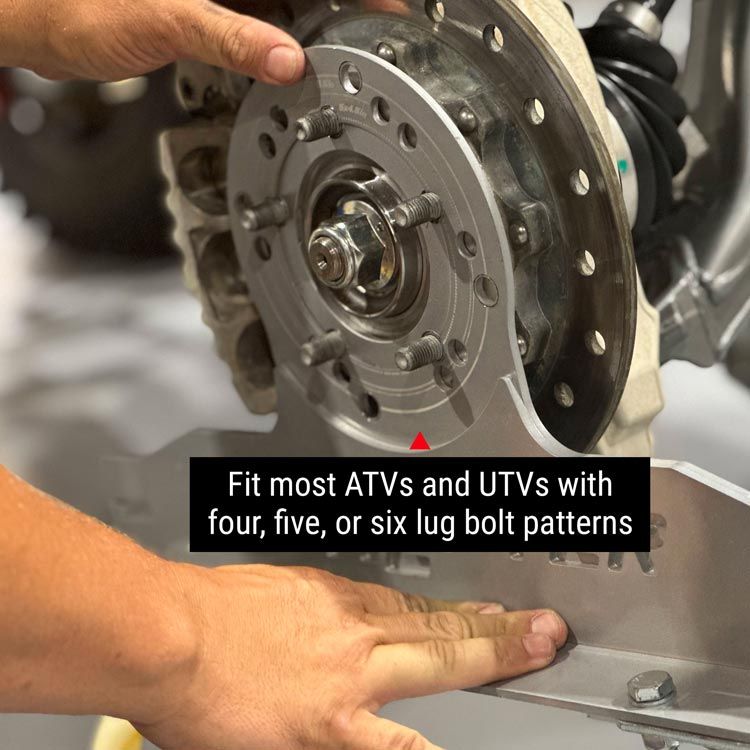

- The plates provided are designed to fit most UTV hub bolt patterns; 4/156 & 4/137 patterns up to 12mm stud size, 4, 5 and 6 lug patterns.? Simply attach the plates to the hub and secure them with the lug nuts.
- Safety Tips:
- Park the vehicle on a hard, level surface. Never Park on a slope or on grass. Chock the wheels (e.g. with bricks) before raising the vehicle.
- Use caution when lowering vehicle so that suspension can settle when alignment kit is installed.
- Park on a flat, level surface to prevent the vehicle from rolling.
- Engage the parking brake to ensure the vehicle stays in place.
- For extra safety, use wheel chocks on the wheels opposite the end you’re lifting to prevent any unintended movement.
- Do not put any part of your body under the vehicle supported by the alignment kit.
- Do not start or run the engine while your vehicle is supported by the alignment kit.
- Follow jacking instructions recommended by your vehicle manufacturer.
- Make sure to set the jack properly in the jack point. Raising the vehicle with jack improperly positioned will damage the vehicle or may allow the vehicle to fall off the jack and cause personal injury.
- Do not use the alignment kit as a wheel dolly to move vehicle around.
